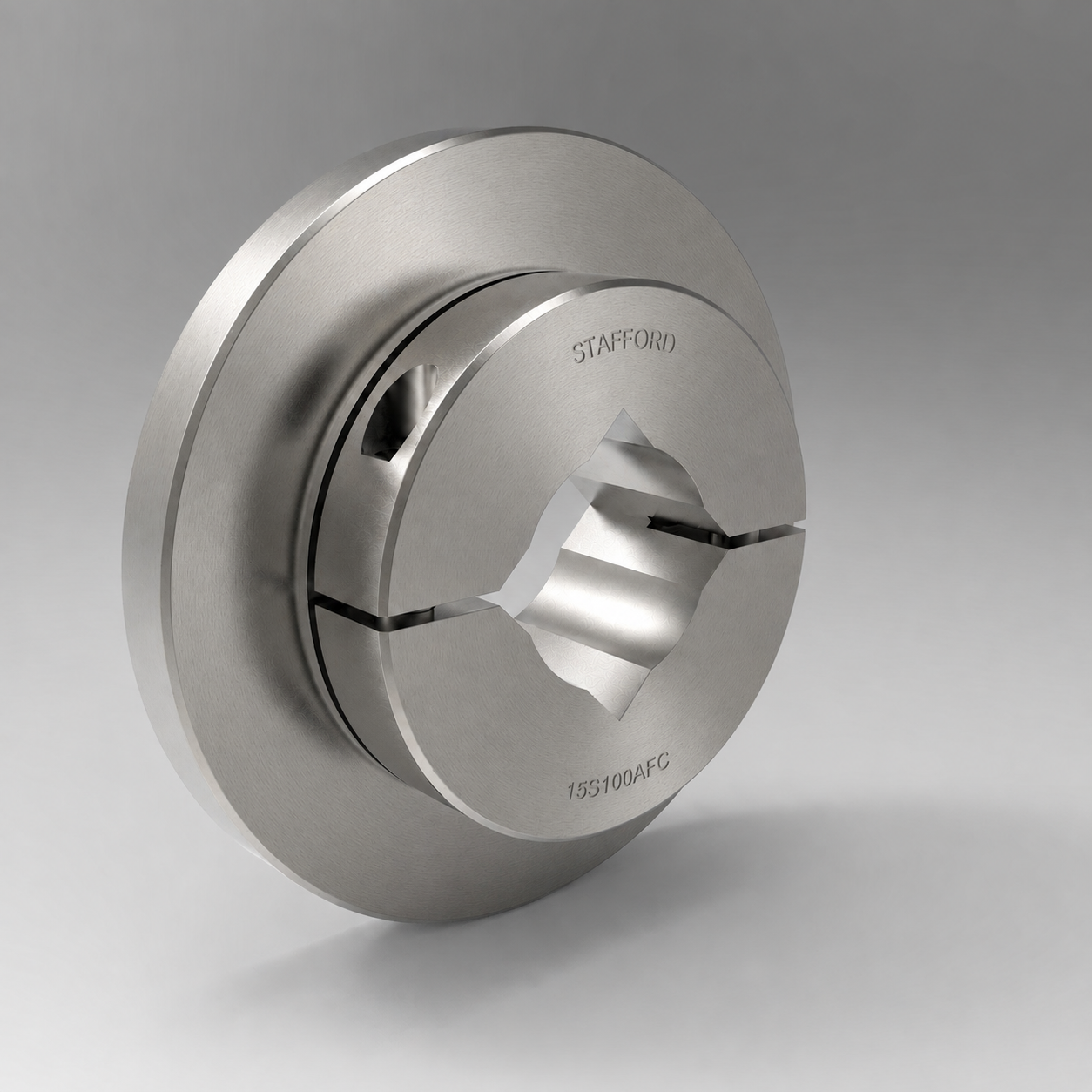

  • Square Bore Accu-Flange Collars
  • Provide a precision mounting surface
  • Will not harm expensive shafts
  • High axial load
  • Easy to reposition
  • Exceptional Torsional Hold
  • With or without our standard 6-hole mount pattern
  • 9 sizes for square shafts from 1/4” to 1-1/2”
  • Also available with Hexagonal Bores
1 - 25 of 27 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Filter Results Add to CAD Cart Request Quote Add to Shopping Cart
Clear Filter

Bore Size (in)

Material

Item #

Bore Size

Material

Flange OD

Total Width

15A004AFC N/A 1/4 in N/A 2024 Aluminum N/A 1.73 in N/A 0.688 in
15A006AFC N/A 3/8 in N/A 2024 Aluminum N/A 2.605 in N/A 0.813 in
15A008AFC N/A 1/2 in N/A 2024 Aluminum N/A 2.98 in N/A 1 in
15A010AFC N/A 5/8 in N/A 2024 Aluminum N/A 3.23 in N/A 1 in
15A012AFC N/A 3/4 in N/A 2024 Aluminum N/A 3.23 in N/A 1 in
15A014AFC N/A 7/8 in N/A 2024 Aluminum N/A 3.48 in N/A 1 in
15A100AFC N/A 1 in N/A 2024 Aluminum N/A 3.73 in N/A 1 in
15A104AFC N/A 1-1/4 in N/A 2024 Aluminum N/A 4.48 in N/A 1.25 in
15A108AFC N/A 1-1/2 in N/A 2024 Aluminum N/A 4.98 in N/A 1.25 in
15L004AFC N/A 1/4 in N/A 1117 Steel N/A 1.73 in N/A 0.688 in
15L006AFC N/A 3/8 in N/A 1117 Steel N/A 2.605 in N/A 0.813 in
15L008AFC N/A 1/2 in N/A 1117 Steel N/A 2.98 in N/A 1 in
15L010AFC N/A 5/8 in N/A 1117 Steel N/A 3.23 in N/A 1 in
15L012AFC N/A 3/4 in N/A 1117 Steel N/A 3.23 in N/A 1 in
15L014AFC N/A 7/8 in N/A 1117 Steel N/A 3.48 in N/A 1 in
15L100AFC N/A 1 in N/A 1117 Steel N/A 3.73 in N/A 1 in
15L104AFC N/A 1-1/4 in N/A 1117 Steel N/A 4.48 in N/A 1.25 in
15L108AFC N/A 1-1/2 in N/A 1117 Steel N/A 4.98 in N/A 1.25 in
15S004AFC N/A 1/4 in N/A 303 Stainless N/A 1.73 in N/A 0.688 in
15S006AFC N/A 3/8 in N/A 303 Stainless N/A 2.605 in N/A 0.813 in
15S008AFC N/A 1/2 in N/A 303 Stainless N/A 2.98 in N/A 1 in
15S010AFC N/A 5/8 in N/A 303 Stainless N/A 3.23 in N/A 1 in
15S012AFC N/A 3/4 in N/A 303 Stainless N/A 3.23 in N/A 1 in
15S014AFC N/A 7/8 in N/A 303 Stainless N/A 3.48 in N/A 1 in
15S100AFC N/A 1 in N/A 303 Stainless N/A 3.73 in N/A 1 in
