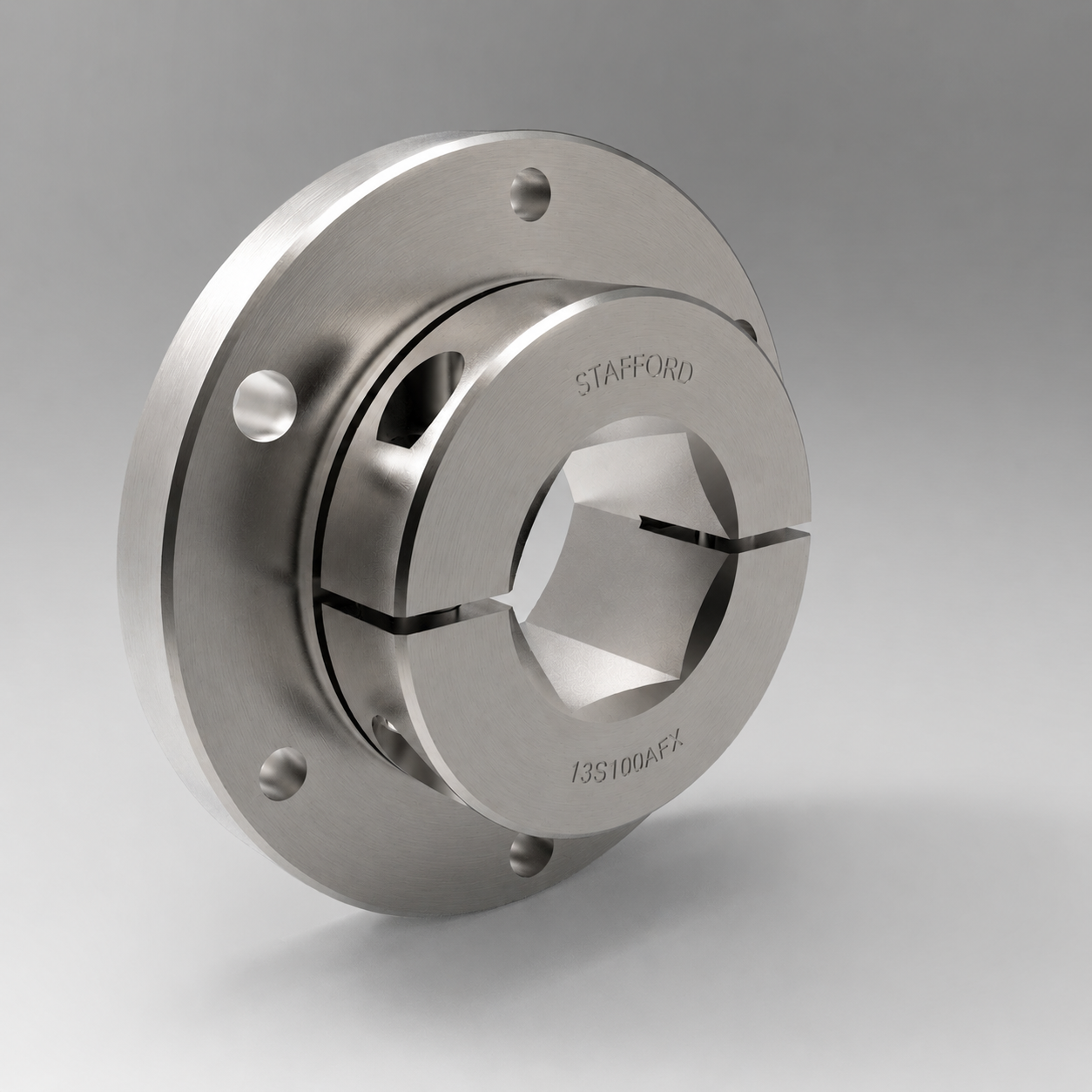

  • Hex Bore Accu-Flange Mounting Collars
  • Provide a precision mounting surface
  • Will not harm expensive shafts
  • High axial load
  • Easy to reposition
  • Exceptional Torsional Hold
  • With or without our standard 6-hole mount pattern
  • 9 sizes for hexagonal shafts from 1/4” to 1-1/2”
  • Also available with Square Bores
1 - 25 of 27 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Filter Results Add to CAD Cart Request Quote Add to Shopping Cart
Clear Filter

Bore Size (in)

Material

Item #

Bore Size

Material

Flange OD

Width

13A004AFX N/A 1/4 in N/A Aluminum N/A 1.480 in N/A 0.625 in
13A006AFX N/A 3/8 in N/A Aluminum N/A 1.730 in N/A 0.688 in
13A008AFX N/A 1/2 in N/A Aluminum N/A 2.230 in N/A 0.750 in
13A010AFX N/A 5/8 in N/A Aluminum N/A 2.605 in N/A 0.813 in
13A012AFX N/A 3/4 in N/A Aluminum N/A 2.980 in N/A 1.000 in
13A014AFX N/A 7/8 in N/A Aluminum N/A 3.230 in N/A 1.000 in
13A100AFX N/A 1 in N/A Aluminum N/A 3.230 in N/A 1.000 in
13A104AFX N/A 1-1/4 in N/A Aluminum N/A 3.730 in N/A 1.000 in
13A108AFX N/A 1-1/2 in N/A Aluminum N/A 4.480 in N/A 1.250 in
13L004AFX N/A 1/4 in N/A Steel (Black Oxide) N/A 1.480 in N/A 0.625 in
13L006AFX N/A 3/8 in N/A Steel (Black Oxide) N/A 1.730 in N/A 0.688 in
13L008AFX N/A 1/2 in N/A Steel (Black Oxide) N/A 2.230 in N/A 0.750 in
13L010AFX N/A 5/8 in N/A Steel (Black Oxide) N/A 2.605 in N/A 0.813 in
13L012AFX N/A 3/4 in N/A Steel (Black Oxide) N/A 2.980 in N/A 1.000 in
13L014AFX N/A 7/8 in N/A Steel (Black Oxide) N/A 3.230 in N/A 1.000 in
13L100AFX N/A 1 in N/A Steel (Black Oxide) N/A 3.230 in N/A 1.000 in
13L104AFX N/A 1-1/4 in N/A Steel (Black Oxide) N/A 3.730 in N/A 1.000 in
13L108AFX N/A 1-1/2 in N/A Steel (Black Oxide) N/A 4.480 in N/A 1.250 in
13S004AFX N/A 1/4 in N/A Stainless Steel (303) N/A 1.480 in N/A 0.625 in
13S006AFX N/A 3/8 in N/A Stainless Steel (303) N/A 1.730 in N/A 0.688 in
13S008AFX N/A 1/2 in N/A Stainless Steel (303) N/A 2.230 in N/A 0.750 in
13S010AFX N/A 5/8 in N/A Stainless Steel (303) N/A 2.605 in N/A 0.813 in
13S012AFX N/A 3/4 in N/A Stainless Steel (303) N/A 2.980 in N/A 1.000 in
13S014AFX N/A 7/8 in N/A Stainless Steel (303) N/A 3.230 in N/A 1.000 in
13S100AFX N/A 1 in N/A Stainless Steel (303) N/A 3.230 in N/A 1.000 in
